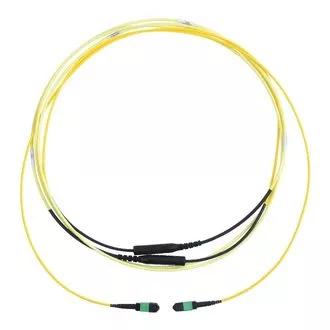

OptiTuff® Mini Trunks
Belden’s OptiTuff® Mini Pre-Terminated Fiber Trunks are the only cable assemblies that combine the durability of metal armored solutions with the performance and installation ease of non-armored solutions. These cable assemblies don’t just stand above other cable assemblies in their category—they stand alone. They provide a cost-effective, ruggedized option to replace traditional metal armored and non-armored fiber pre-terminated products in data centers, enterprise LAN environments, hospitality, gaming and casinos, etc.—with no grounding or conduit required. Fewer layers and the elimination of metal armor creates a lightweight cable with a high level of flexibility, plus a small diameter and small bend radius for easy cable preparation, installation and pulling.
Features & Benefits
- Reduces Space and Weight: OptiTuff Mini Fiber Trunks are up to 66% smaller than traditional AIA trunks (4.0 mm vs 11.8 mm) and up to 16% smaller than non-armored trunks (4.0 mm vs 4.8 mm) supporting space savings in high-density installations
- Increase Ruggedness: OptiTuff Mini Fiber Trunks can be stapled to walls (when needed) and won’t require conduit. These cables have two times the crush resistance than non-armored trunks (220 lbs vs. 100 lbs)
- Ease of Installation: No grounding kit necessary, resulting in material and labor cost savings. With a small bend radius, these are more flexible than metal armored cables and are up to 90% lighter weight than traditional AIA trunks with anti-kink properties, making pulling fast and easy
- Cost Effective: Up to 50% less expensive than traditional AIA trunks
77 product families

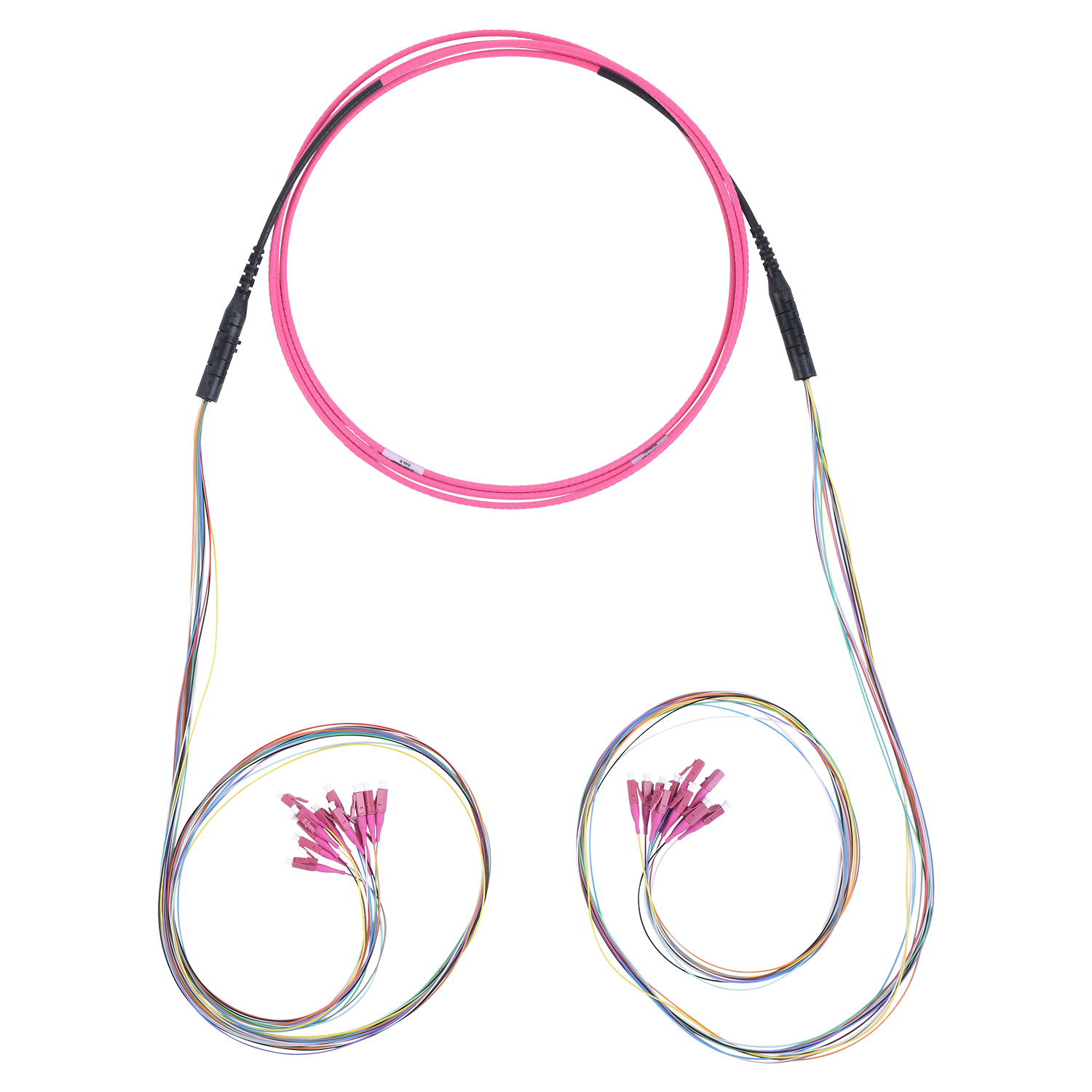

FY4ALCBLCBS010M
Y OM4 12F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL

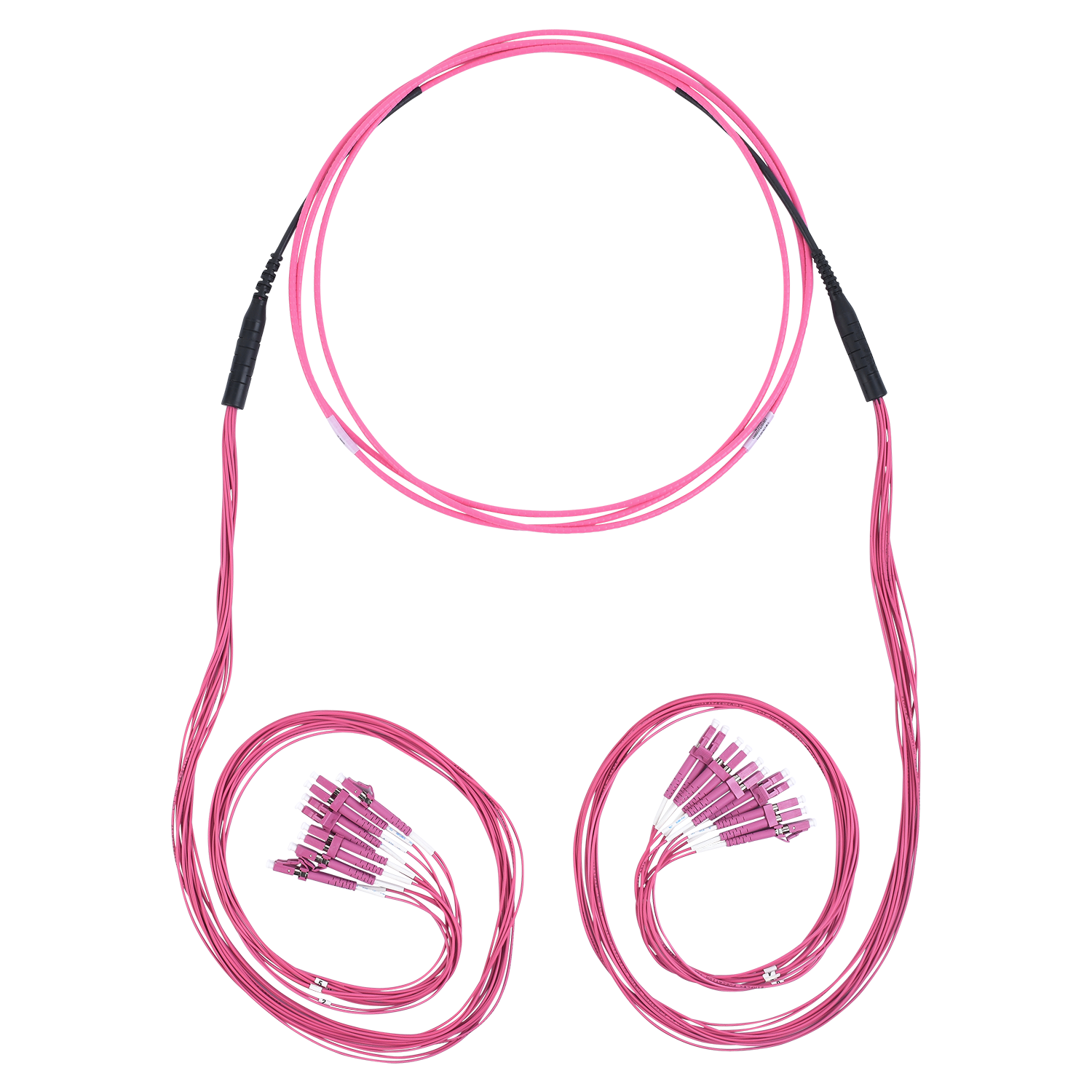

FY4ALDFLDFX010M
Y OM4 12F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

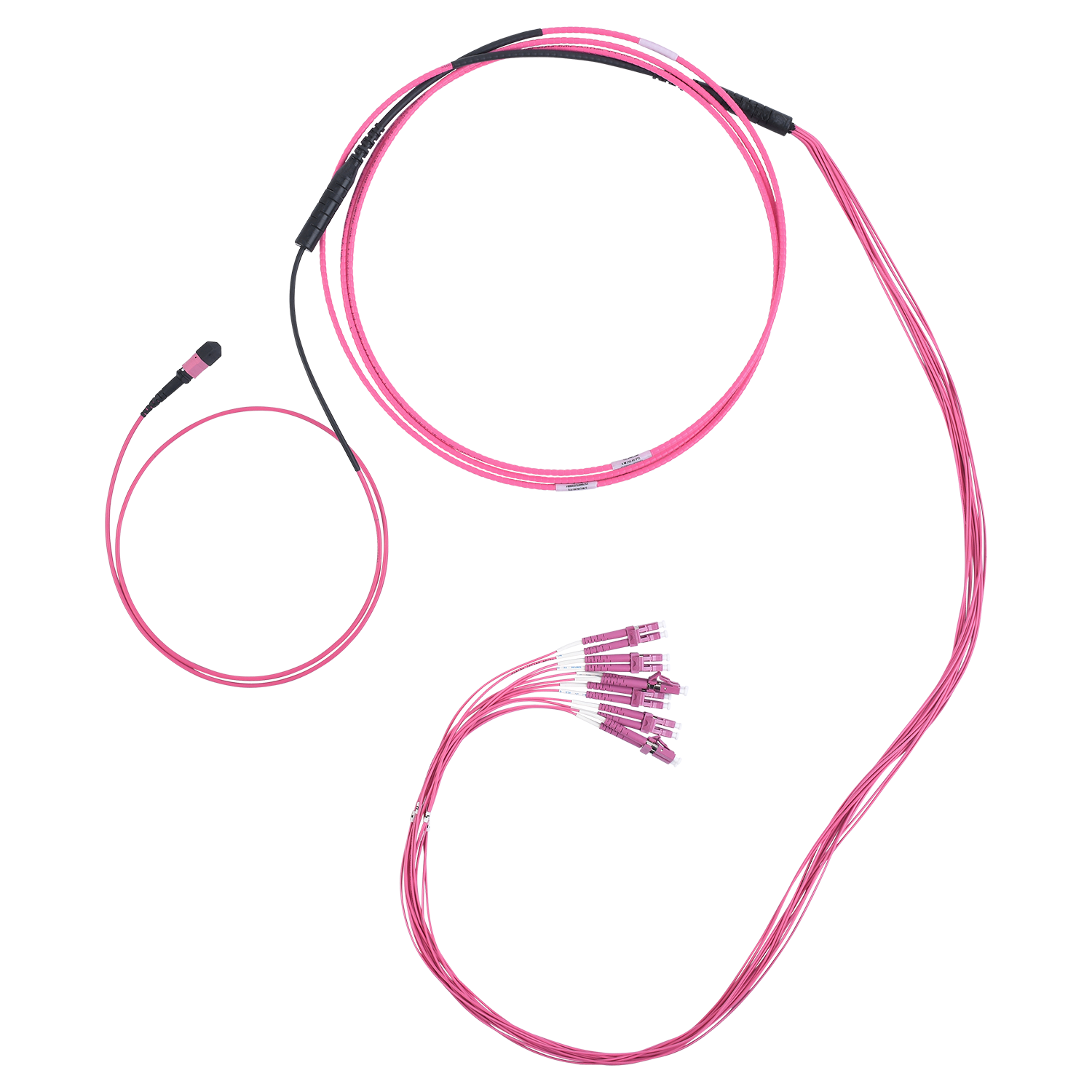

FY4ALDFMMFA010M
Y OM4 12F LC_DX MPO12_M 10M T-A OFNP JKTx1.0xIL JKTx1.0xIL

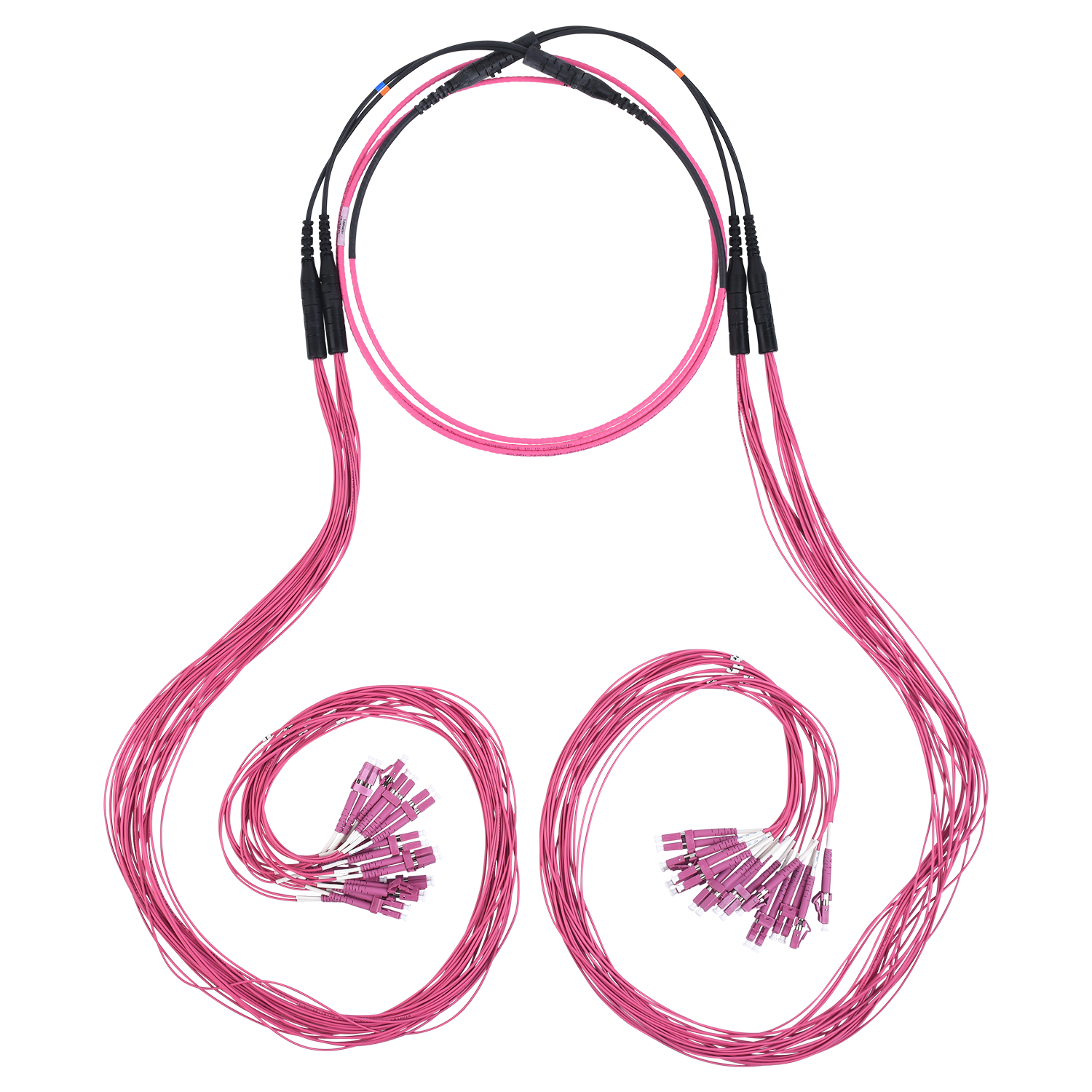

FY4CLDFLDFX010M
Y OM4 24F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

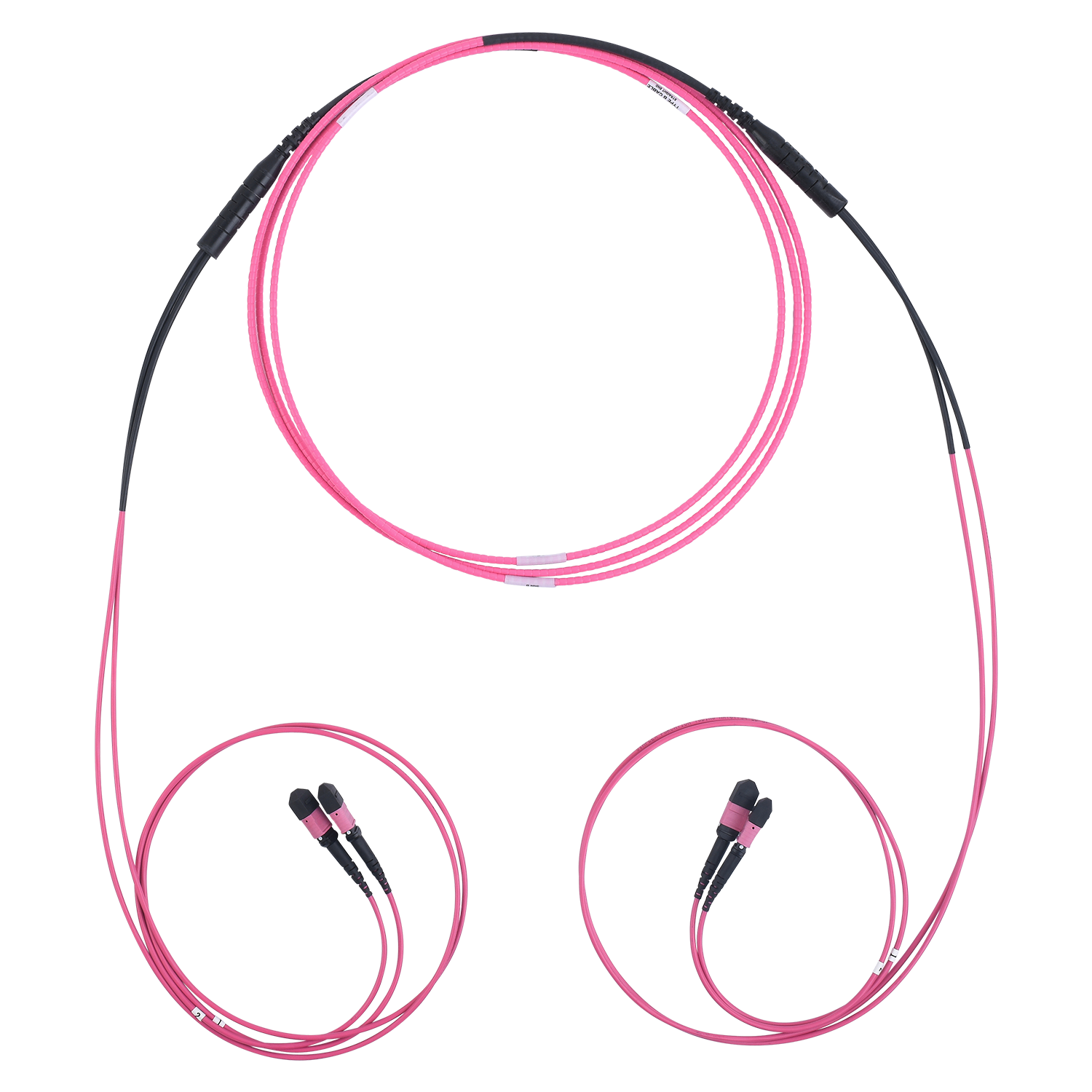

FY4CMMFMMFB010M
Y OM4 24F MPO12_M MPO12_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL

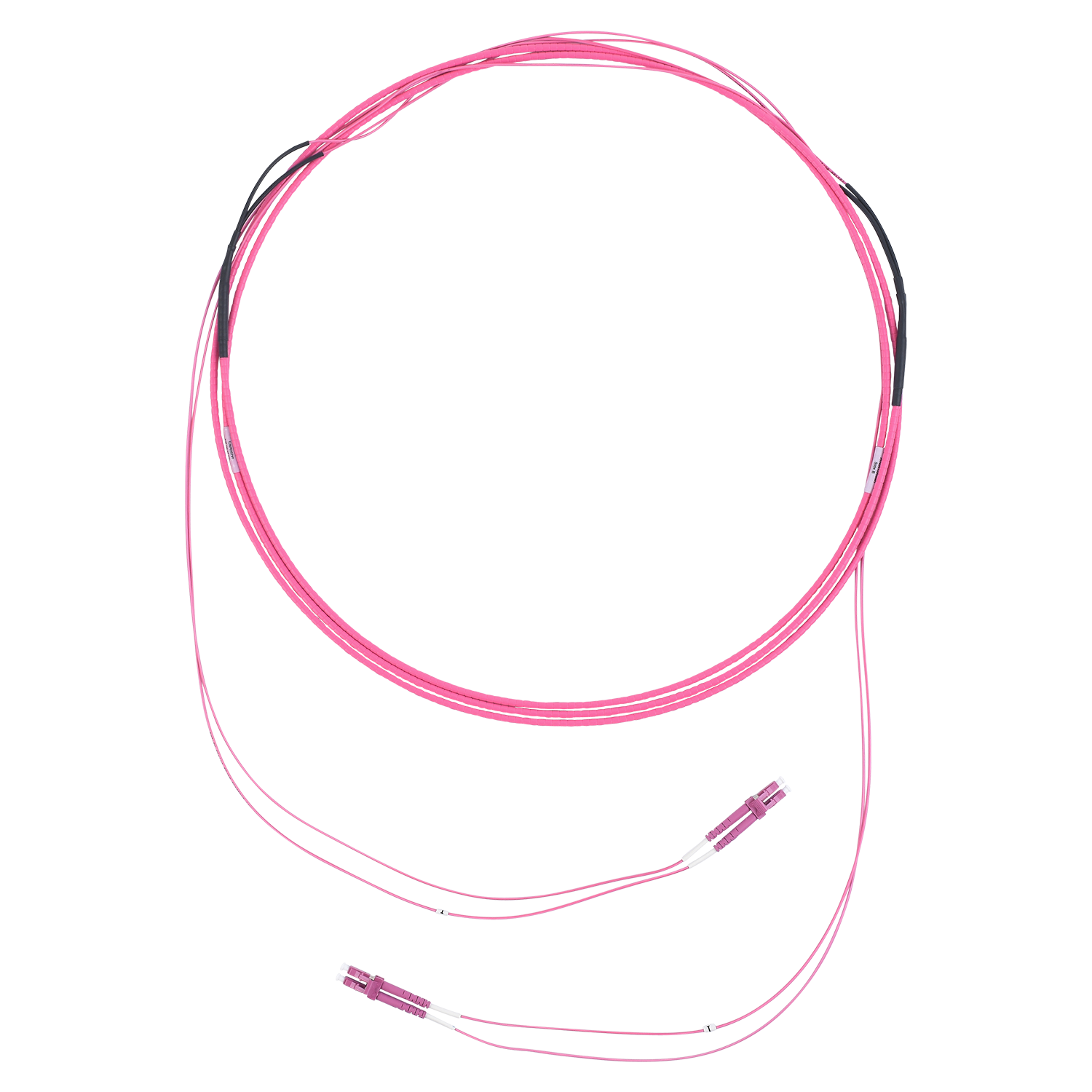

FY42LDFLDFX010M
Y OM4 2F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

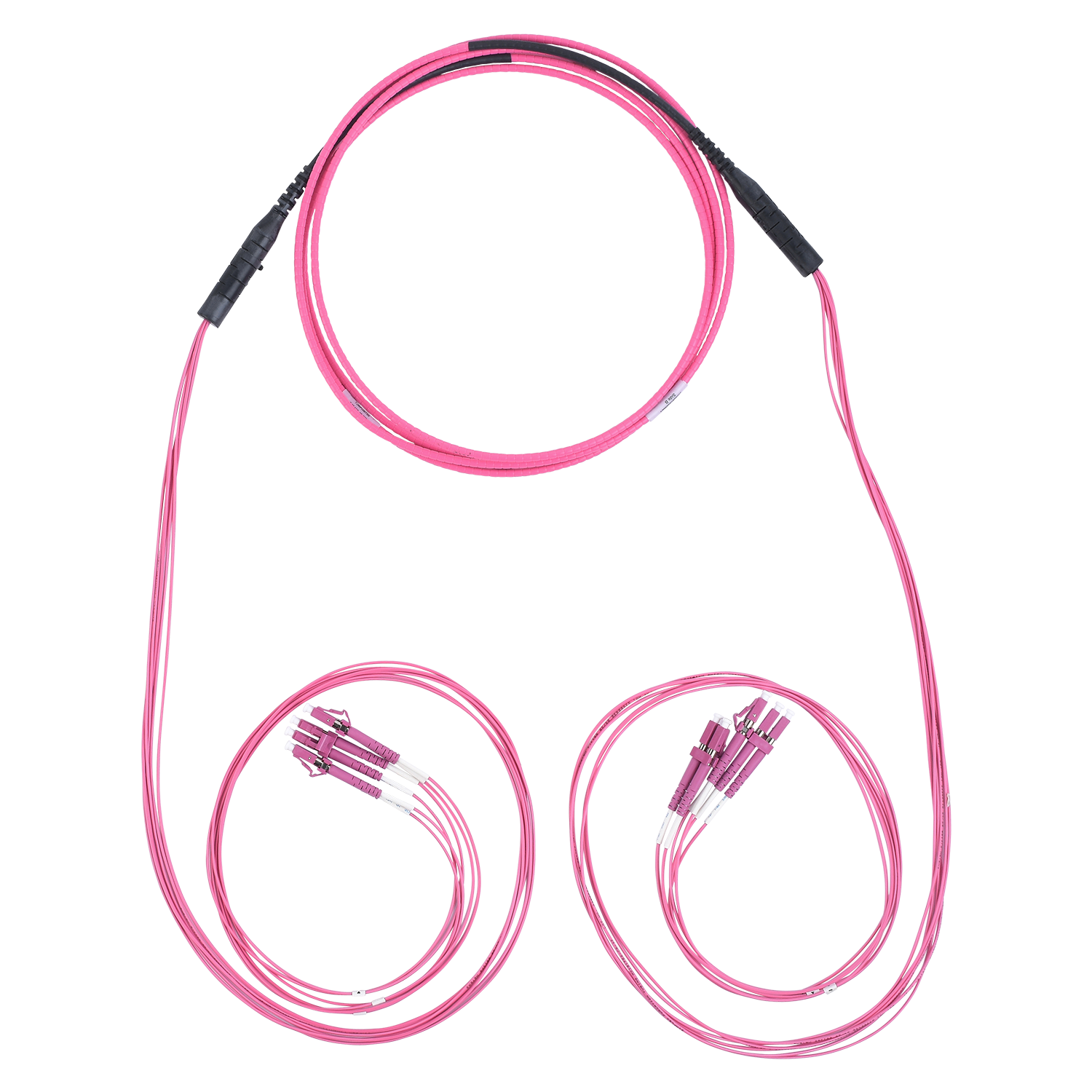

FY46LDFLDFX010M
Y OM4 6F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

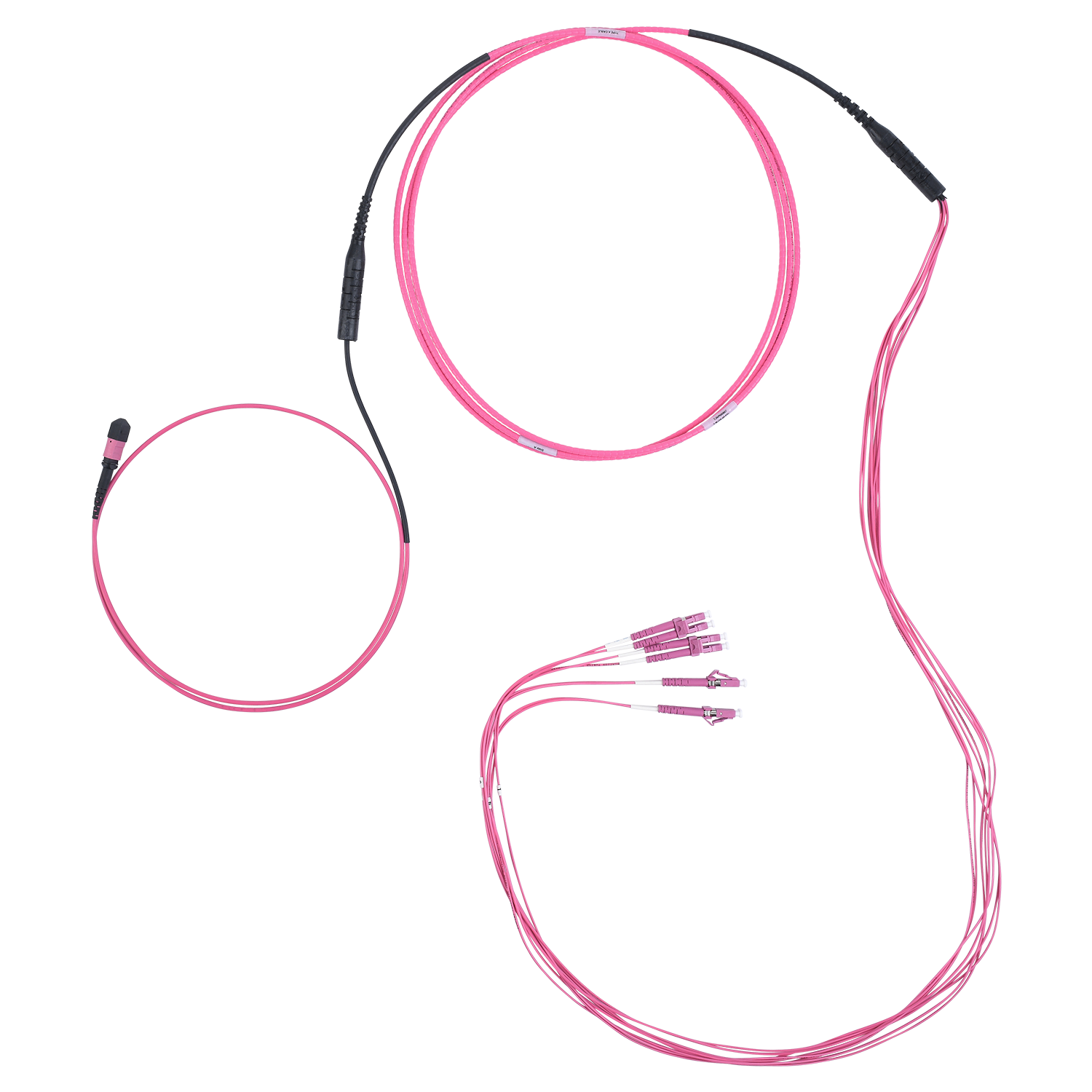

FY48LDF4MF4010M
Y OM4 8F LC_DX MPO8_M 10M SR4 OFNP JKTx1.0xIL JKTx1.0xIL

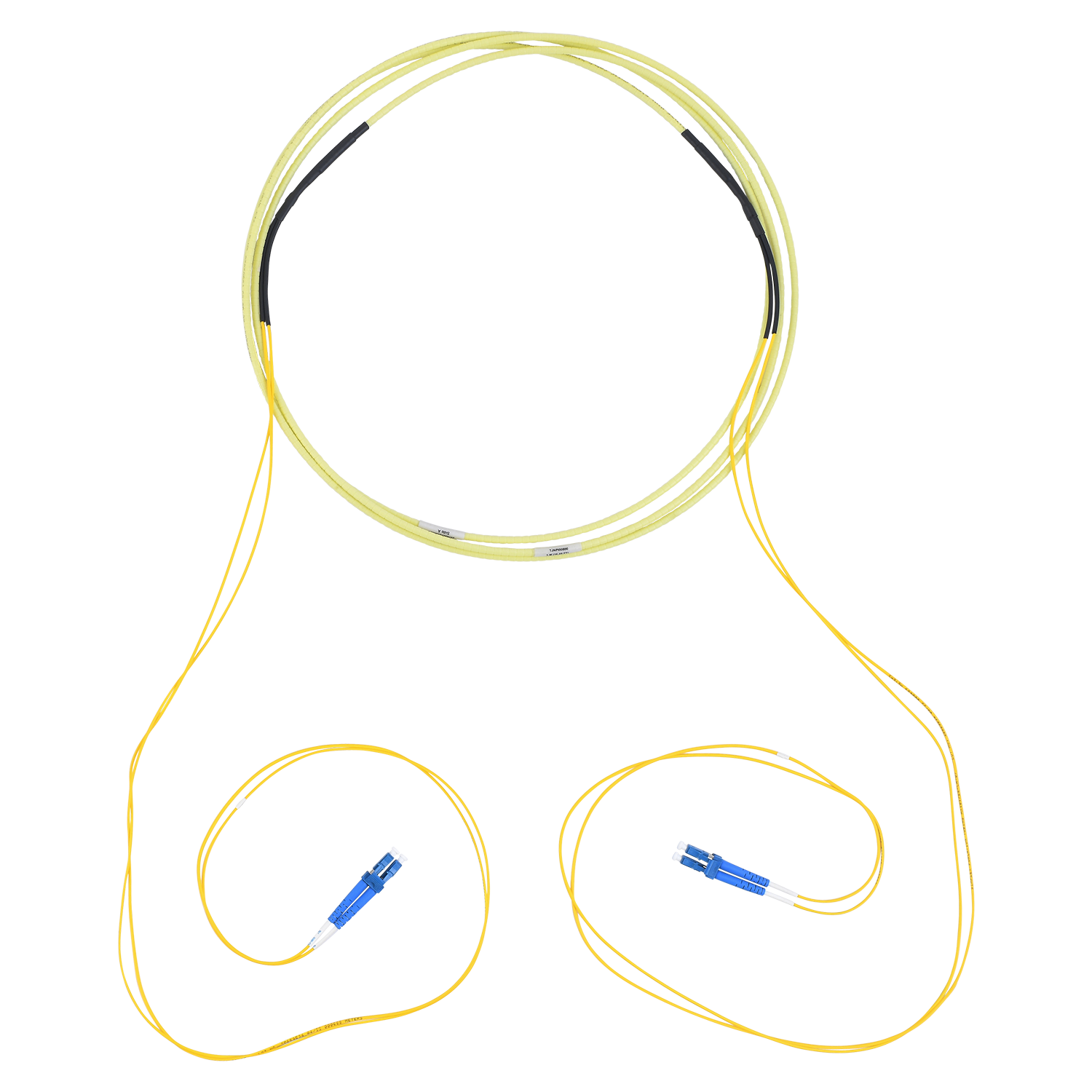

FYS2LDFLDFX010M
Y OS2 2F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

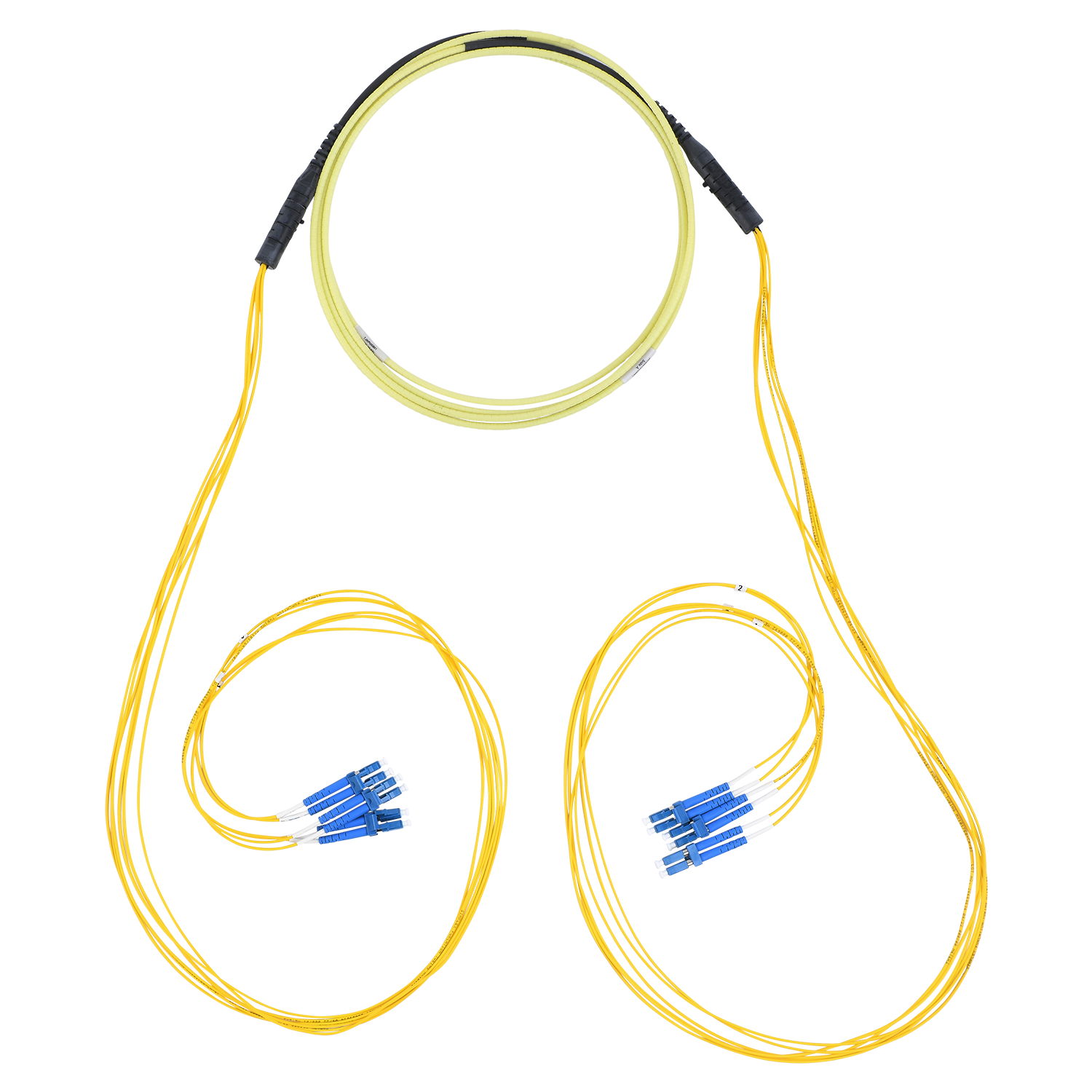

FYS6LDFLDFX010M
Y OS2 6F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

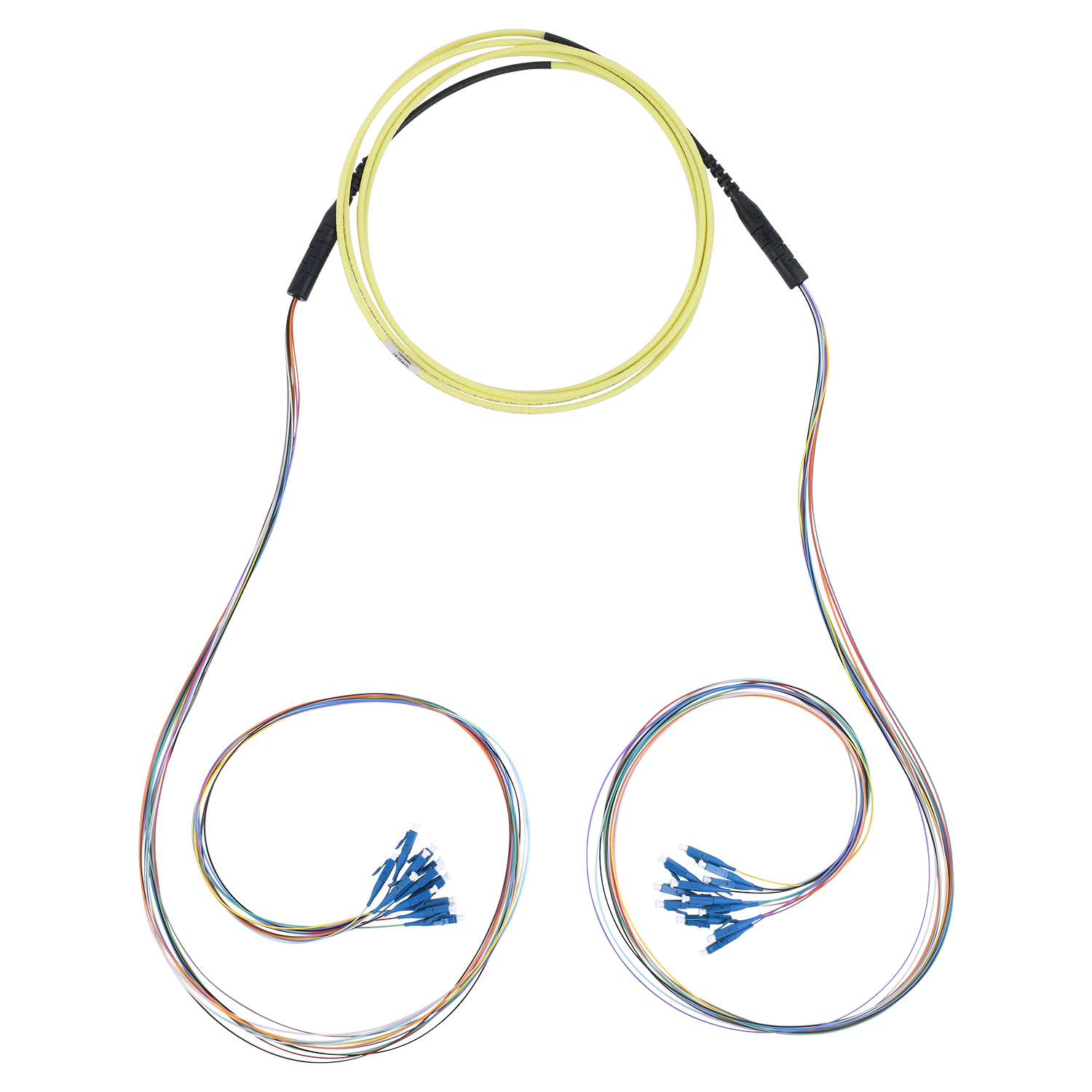

FYSALCBLCBS010M
Y OS2 12F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL

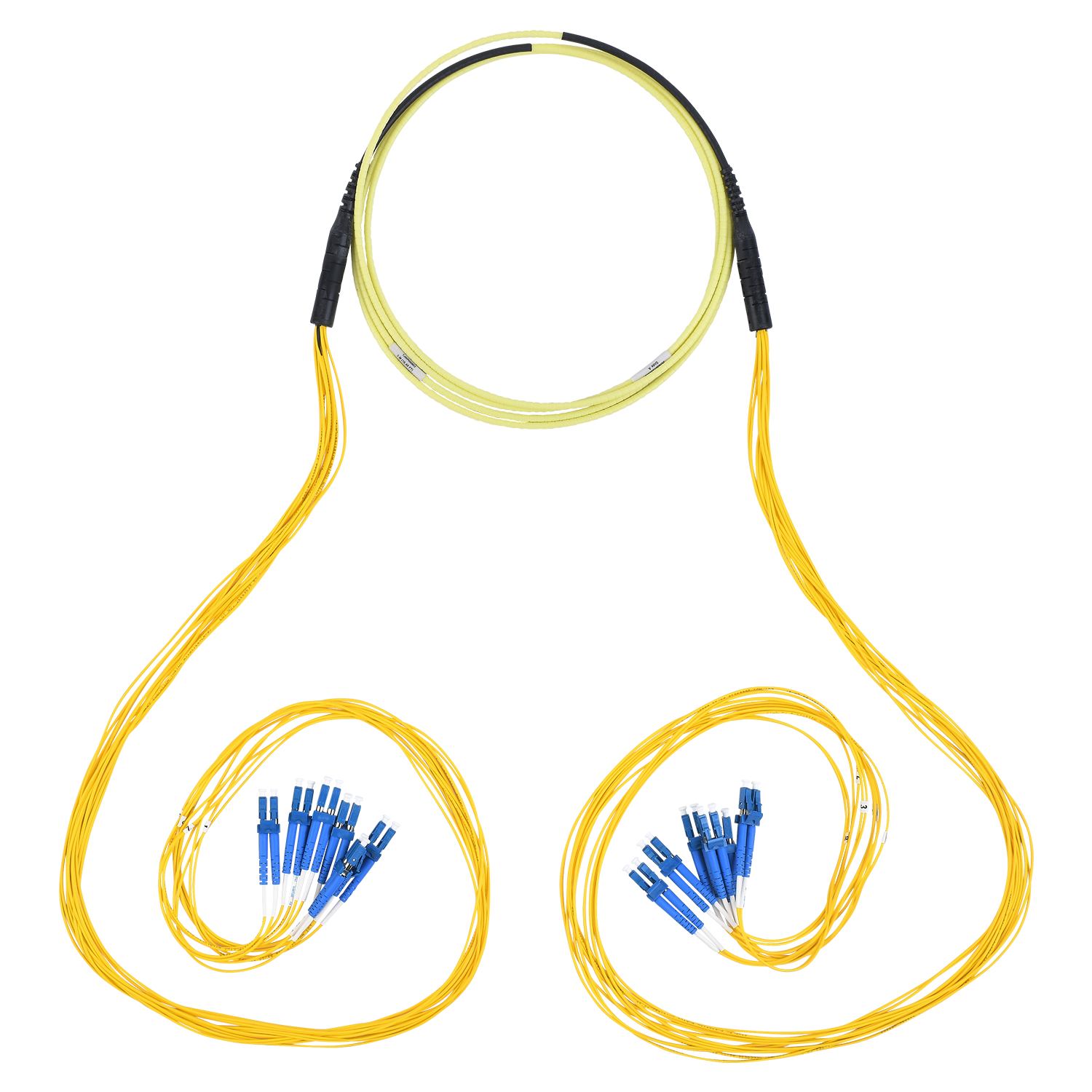

FYSALDFLDFX010M
Y OS2 12F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

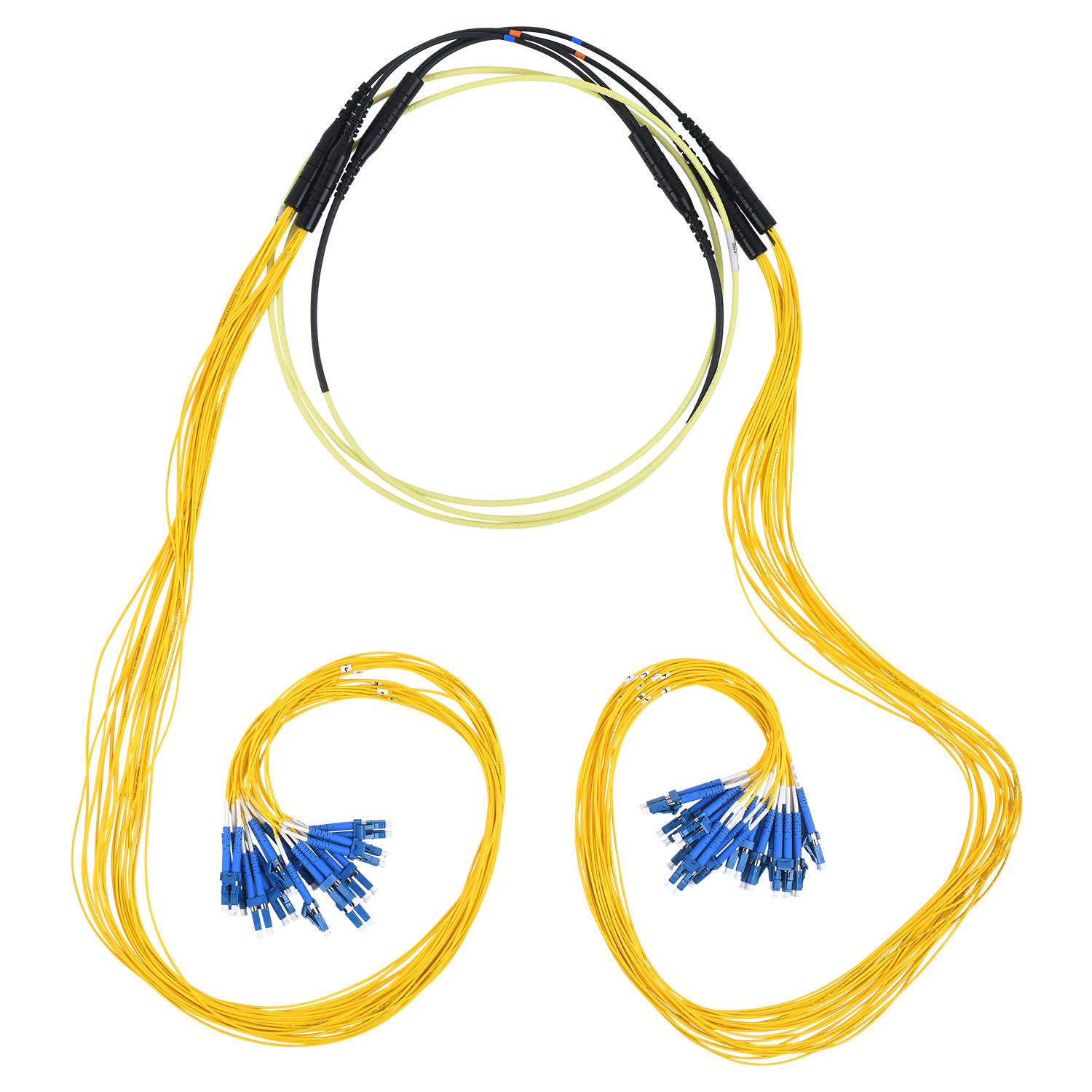

FYSCLDFLDFX010M
Y OS2 24F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL

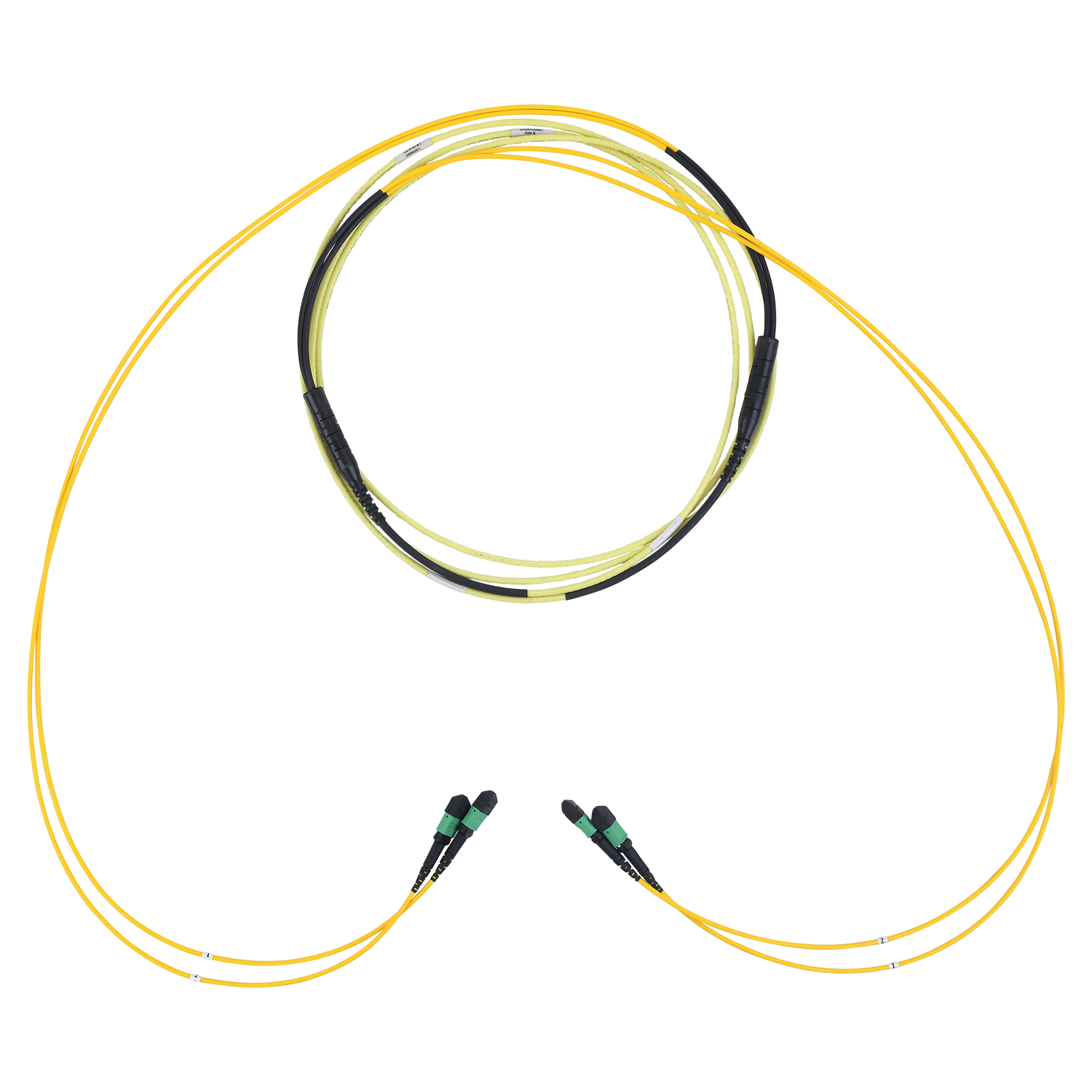

FYSCMMFMMFB010M
Y OS2 24F MPO12_M MPO12_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4ALUFLUFX010M
Y OM4 12F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4AMMFMMFB010M
Y OM4 12F MPO12_M MPO12_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4B4MF4MFB010M
Y OM4 16F MPO8_M MPO8_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4BLCBLCBS010M
Y OM4 16F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY4BLDF4MF4010M
Y OM4 16F LC_DX MPO8_M 10M SR4 OFNP JKTx1.0xIL JKTx1.0xIL
FY4BLDFLDFX010M
Y OM4 16F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4BLUFLUFX010M
Y OM4 16F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4C4MF4MFB010M
Y OM4 24F MPO8_M MPO8_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL
FY4CLCBLCBS010M
Y OM4 24F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY4CLDF4MF4010M
Y OM4 24F LC_DX MPO8_M 10M SR4 OFNP JKTx1.0xIL JKTx1.0xIL
FY4CLDFMMFA010M
Y OM4 24F LC_DX MPO12_M 10M T-A OFNP JKTx1.0xIL JKTx1.0xIL
FY4CLUFLUFX010M
Y OM4 24F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY42LCBLCBS010M
Y OM4 2F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY42LUFLUFX010M
Y OM4 2F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY44LCBLCBS010M
Y OM4 4F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY44LDFLDFX010M
Y OM4 4F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY44LUFLUFX010M
Y OM4 4F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY46LCBLCBS010M
Y OM4 6F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY46LUFLUFX010M
Y OM4 6F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY48LCBLCBS010M
Y OM4 8F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FY48LDFLDFX010M
Y OM4 8F LC_DX LC_DX 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY48LUFLUFX010M
Y OM4 8F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FY484MF4MFB010M
Y OM4 8F MPO8_M MPO8_M 10M T-B OFNP JKTx1.0xIL JKTx1.0xIL
FYS1LBBLBBS010M
Y OS2 1F LC_SX/A LC_SX/A 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FYS1LBFLBFS010M
Y OS2 1F LC_SX/A LC_SX/A 10M A-A OFNP JKTx1.0xIL JKTx1.0xIL
FYS1LCBLCBS010M
Y OS2 1F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FYS1LCFLCFS010M
Y OS2 1F LC_SX LC_SX 10M A-A OFNP JKTx1.0xIL JKTx1.0xIL
FYS2LAFLAFX010M
Y OS2 2F LC_DX/A LC_DX/A 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FYS2LBBLBBS010M
Y OS2 2F LC_SX/A LC_SX/A 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FYS2LCBLCBS010M
Y OS2 2F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FYS2LUFLUFX010M
Y OS2 2F LD_UNI LD_UNI 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FYS4LAFLAFX010M
Y OS2 4F LC_DX/A LC_DX/A 10M A-B OFNP JKTx1.0xIL JKTx1.0xIL
FYS4LBBLBBS010M
Y OS2 4F LC_SX/A LC_SX/A 10M A-A OFNP 900x1.0xIL 900x1.0xIL
FYS4LCBLCBS010M
Y OS2 4F LC_SX LC_SX 10M A-A OFNP 900x1.0xIL 900x1.0xIL
