Lumberg Automation Circular Connectors Mini Power Series
With the Mini Power connectivity and power solution, you can easily set up, maintain or expand your system, while maximizing uptime in harsh conditions.
Features & Benefits
- Robust Industrial Design: Works in environments with wet or dry areas or extreme temperatures
- Ease of Use: Ready-to-install already terminated cordsets and connectors
- Maximum Output: Enabling the transmission of up to 30 A per contact
7 product families
RSRK 100M-S4677
MINI C | Cordset | 1-1/8 Male Straight, 10-pin → 1-1/8 Female Straight, 10-scoket | Yellow TPE; 16 AWG | 600 V / 7 A
24 items

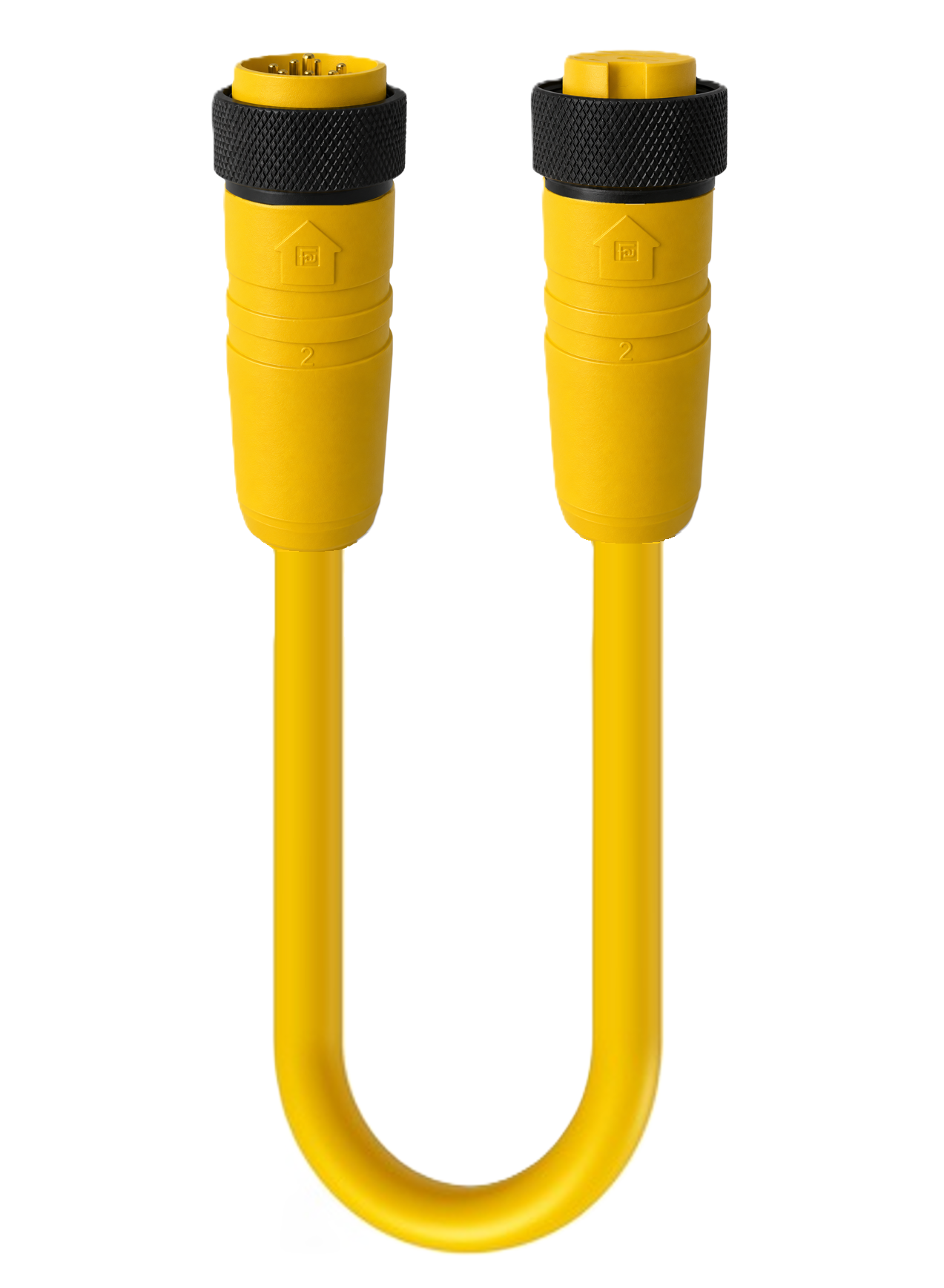

RSRK 1001M-752
MINI C | Cordset | 1-1/8 Male Straight, 10-pin → 1-1/8 Female Straight, 10-socket | Yellow TPE; 18 AWG | 300 V / 7 A
13 itemsRSRK 1201M-654
MINI C | Cordset | 1-1/8 Male Straight, 12-pin → 1-1/8 Female Straight, 12-socket | Yellow PUR; 18 AWG | 300 V / 5 A
5 items

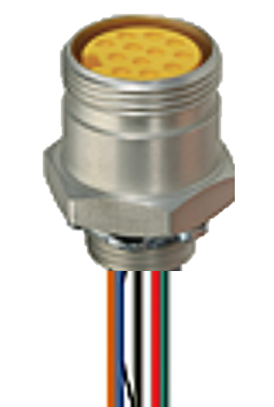

RKF 901M-623
1-1/8 - Female 0° | #Contacts: 9 | 600 V | Wires, 16 AWG, US | cURus"
3 items
RS 40-RKT 4-637/1M P-13454
7/8" to M12, Power Double-Ended Cordset: Male straight to female straight, 4-pin, Yellow body, 250 V, 4 A; yellow TPE jacket, 0.824 mm2 (18 AWG)
1 itemRKF 90M-623
1-1/8 - Female 0° | #Contacts: 9 | 600 V | Wires, 16 AWG, US | cURus"
RSRK 120M-724
Obsolete | Replacement: RSRK 120M-S4678
