Belden Cable
Call for Price
Ships from and sold by A5 IT
Call for pricing
This part is quoted to order. Call for current pricing, lead time and volume breaks on the Belden FISD072AK.
224-955-1644Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Product Category: Fiber Distribution Cable
- Suitable Applications: Premise Backbone

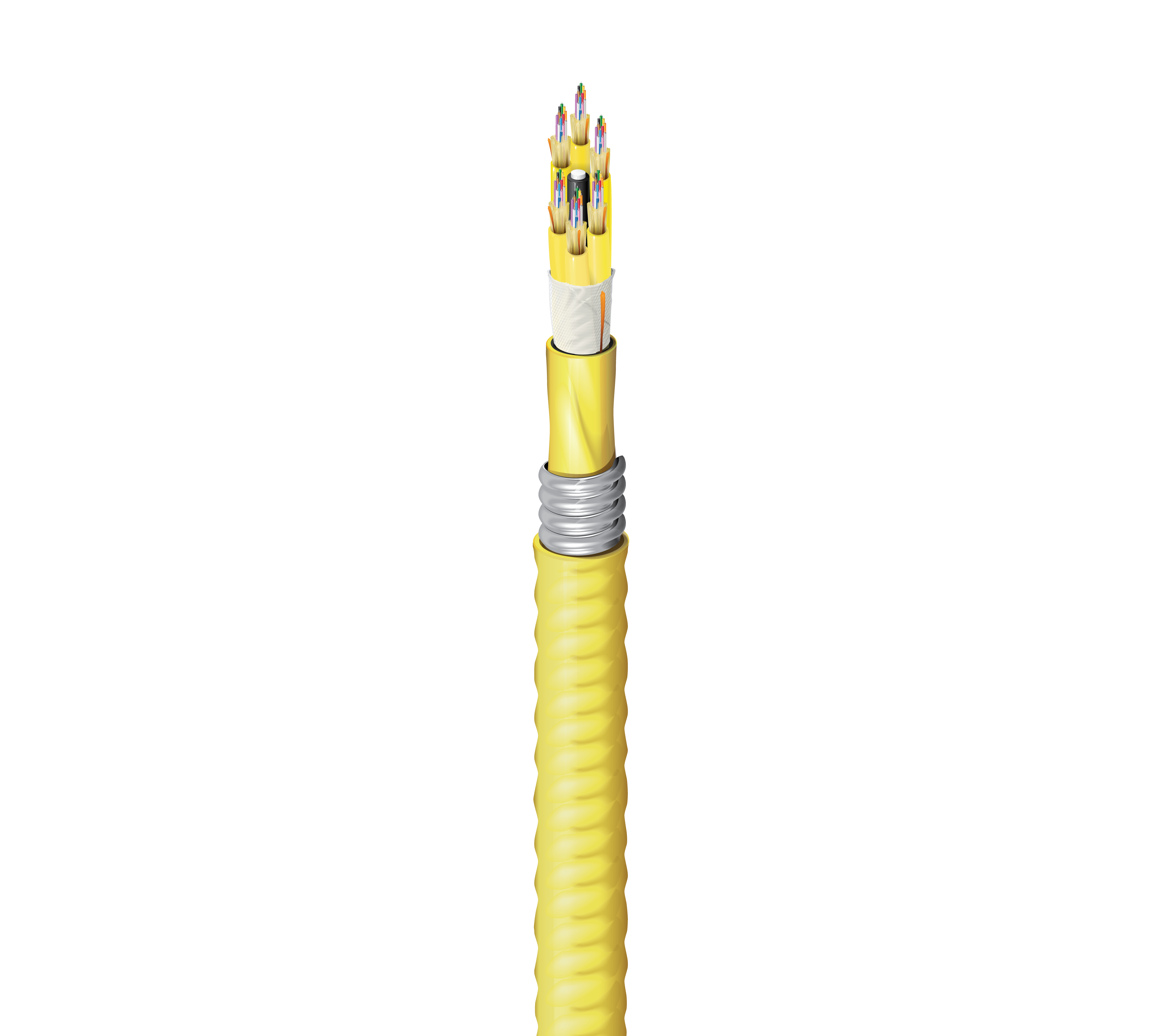

Belden FISD072AK is an orderable item number in the Belden FISD072AK family (Cable › Fiber Optic Cable › Distribution Tight Buffer Fiber Cable). FX Indoor OS2 Distribution Tight Buffer 72 Fibers OFCP Aluminum Interlocked Armor Sub-Units(12F) Yellow Jacket Ships from and sold by A5 IT. Quoted to order.
History
| Update And Revision | Revision Number: 0.101 Revision Date: 02-20-2026 |
Product Overview
| Product Category | Fiber Distribution Cable |
| Suitable Applications | Premise Backbone |
Temperature Range
| Storage Temperature Range | -40°C to +70°C |
| Operating Temperature Range | 0°C to +70°C |
| Installation Temperature Range | 0°C to +60°C |
Cable Construction
| Subunit Color | Yellow |
| Subunit Diameter | 0.220 in (5.6 mm) |
| Core Wrap Material | Nomex tape |
| Fibers Per Subunit | 12 |
| Number Of Active Subunits | 6 |
| Central Strength Member Type | Upjacketed GRP |
| Fiber SubUnit Strength Members | Aramid yarns |
Armor Specifications
| Armor Type And Material | AIA - Aluminum Interlock Armor |
Fiber Specifications
| Fiber Type | OS2 |
| Fiber Count | 72 |
| Fiber Color Coding | TIA-598-D |
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Buffer Diameter | 900 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
Standards And Compliance
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| ICEA Compliance | S-83-596 |
| Environmental Suitability | Indoor |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| Flammability / Reaction To Fire | OFCP, FT6 |
Mechanical Characteristics
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 305 lbs/kft (454 kg/km) |
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Minimum Bend Radius During Installation | 20x Cable OD |
| Max. Tensile Strength During Installation | 1320 N (300 lbf) |
Inner Jacket Specifications
| Color | Yellow |
| Material | PVC - Polyvinyl Chloride |
| Number Of Inner Jacket Ripcords | 1 |
| Nominal Diameter@InnerJacket1 (Cnv) | 0.723 in (18.4 mm) |
Outer Jacket Specifications
| Nom. Diameter | 1.075 in (27.3 mm) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Outer Jacket Color | Yellow |
| Optical Characteristics Row 1 — 1310 Nm | 0.50 dB/km |
| Optical Characteristics Row 1 — 1550 Nm | 0.50 dB/km |
| Optical Characteristics Row 2 — 1310 Nm | 9.2 μm |
| Optical Characteristics Row 2 — 1550 Nm | 10.4 μm |
| Optical Characteristics Row 3 — 1310 Nm | 5,000 m |
| Optical Characteristics Row 3 — 1550 Nm | -- |
| Optical Characteristics Row 4 — 1310 Nm | 10,000 m |
| Optical Characteristics Row 4 — 1550 Nm | 50,000 m |
| Optical Characteristics Row 1 — Wavelength | Max. Attenuation |
| Optical Characteristics Row 2 — Wavelength | Mode Field Diameter |
| Optical Characteristics Row 3 — Wavelength | 1 Gigabit Ethernet Performance |
| Optical Characteristics Row 4 — Wavelength | 10 Gigabit Ethernet Performance |
